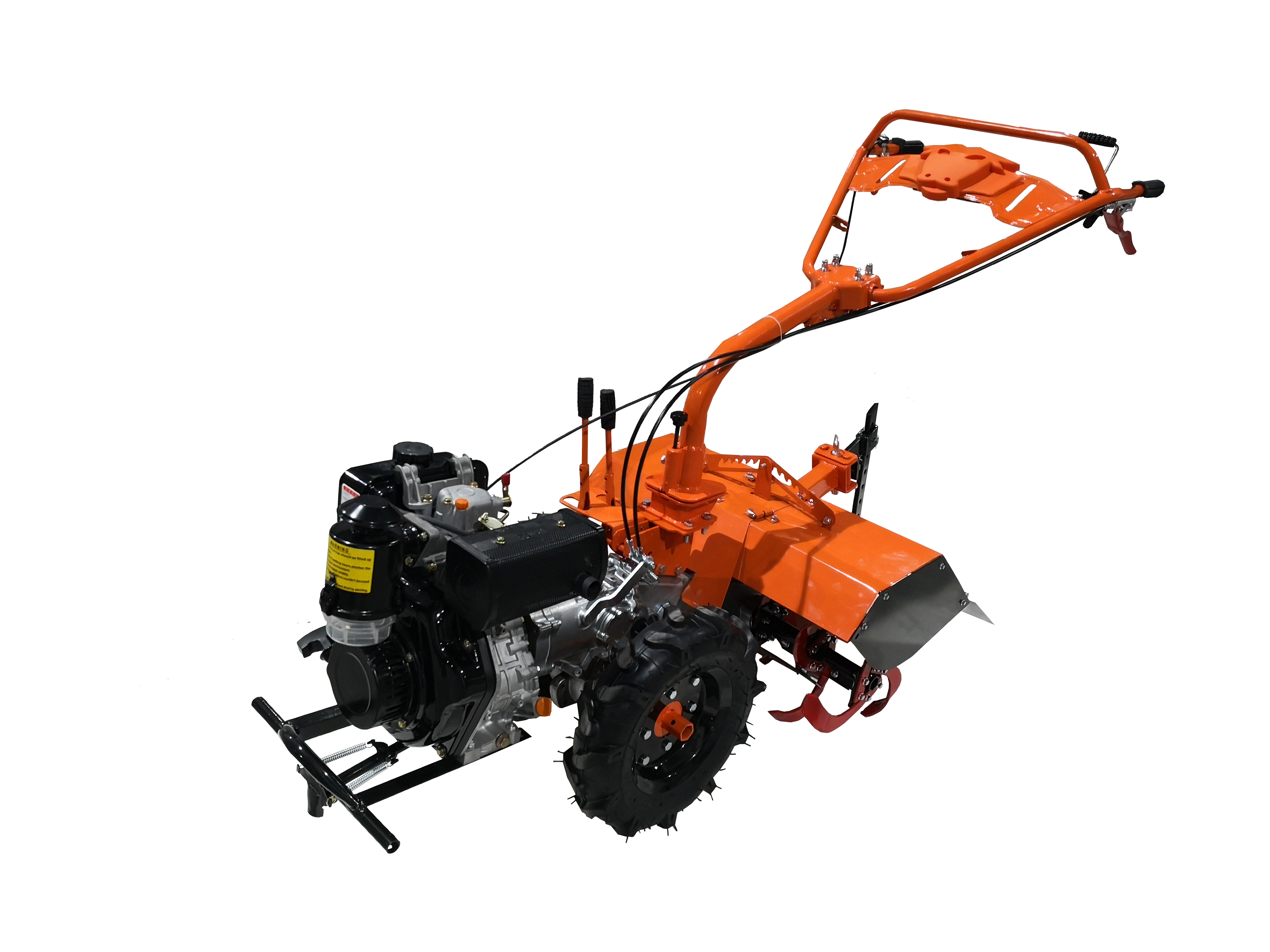

產品規格型號確認表Specifications (Small 4 drive power weeder) |
|
|
|
|
|
序號S.N |
項目名稱 Name |
單位Unit |
設計值 Parameter |
|
|
|
|
|
1 |
主機main part |
型號名稱Model |
/ |
3TG-6.5FQ |
|
|
|
|
|
工作狀態外形尺寸 (長×寬×高) Size(L*W*H) |
mm |
|
|
|
|
|
|
主（副）變速箱結構型式 |
/ |
有級式 gears |
|
|
|
|
|
Main(auxiliary) transmission box type |
|
|
|
|
|
主（副）變速箱箱體材質 |
/ |
箱體灰鐵 |
|
|
|
|
|
Main (auxiliary) transmission box matiral |
Up: AL, Down: casting |
|
|
|
|
|
扶把水平調整范圍 |
/ |
360° |
|
|
|
|
|
handle adjustment range(horizontal direction) |
|
|
|
|
|
扶把上下調整范圍 |
/ |
180° |
|
|
|
|
|
Handle adjustment range (up and down direction) |
|
|
|
|
|
發動機輸出傳動方式 |
/ |
直聯 gear |
|
|
|
|
|
Engine power transmission type |
|
|
|
|
|
作業時驅動輪型式 |
/ |
鐵輪／膠輪 Iron/rubber tyre |
|
|
|
|
|
Driving wheel |
|
|
|
|
|
行駛速度 working speed |
km/h |
≤10 |
|
|
|
|
|
型號名稱 Engine type |
/ |
汽油機（223） Diesel engine(electric start) |
|
|
|
|
|
標定功率 Rated horsepower |
kW |
5.5 |
|
|
|
|
|
額定轉速 rated speed |
r/min |
3600 |
|
|
|
|
|
起動方式Start type |
/ |
手拉 |
|
|
|
|
|
燃油種類 Fuel type |
/ |
汽油油 Diesel |
|
|
|
|
|
行走轉速 Walking speed |
r/min |
快檔/F 38.97 空檔/N 慢檔/S 19 倒檔/R 19.7 |
|
|
|
|
|
2 |
鋤草刀具grass mover |
鋤草裝置型式 Grass mover equipment type |
/ |
輪式 wheel |
|
|
|
|
|
傳動方式 Transmission type |
/ |
齒輪傳動 gear |
|
|
|
|
|
鋤草工作幅寬 Grass mover working width |
cm |
60 |
|
|
|
|
|
（反轉）Counterclockwise |
鋤草作業速度 Grass mover working speed |
km/h |
≥0.4 |
|
|
|
|
|
旋耕轉速 Speed |
r/min |
快速/Fast 487 慢速/ Slower 238 |
|
|
|
|
|
鋤草深度 grass mover working depth |
cm |
≥2 |
|
|
|
|
|
3 |
配套開溝ditch |
開溝器型式 Furrow type |
/ |
刀片式 blades |
|
|
|
|
|
開溝工作幅寬 Width |
cm |
30 |
|
|
|
|
|
（反轉）Counterclockwise |
開溝作業速度 ditching Speed |
km/h |
≤20 |
|
|
|
|
|
旋耕轉速 tilling Speed |
r/min |
快速/Fast 487 慢速/Slow 238 |
|
|
|
|
|
開溝深度 Depth |
cm |
≥10 |
|
|
|
|
|
4 |
配套培土刀具furrow |
培土工作幅寬 width |
cm |
30-100 |
|
|
|
|
|
培土作業速度 speed |
km/h |
≤20 |
|
|
|
|
|
（反轉）Counterclockwise |
培土高度 height |
cm |
≤25 |
|
|
|
|
|
旋耕轉速 tilling Speed |
r/min |
快速/Fast 487 慢速/Slow 238 |
|
|
|
|
|
培土器型式 type |
/ |
刀片式 blades |
|
|
|
|
|
5 |
旋耕刀具tilling |
工作幅寬 Width |
cm |
70 |
|
|
|
|
|
旋耕深度 depth |
cm |
≥15 |
|
|
|
|
|
旋耕速度 tilling speed |
km/h |
≤19 |
|
|
|
|
|
（正轉）clockwise |
刀具數量（2片3組） |
/ |
12 |
|
|
|
|
|
旋耕轉速 rotation speed |
r/min |
238 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
